Model of Extrusion Laminating Machine:
ITEM/TYPE
SJFM-800
SJFM-1100
SJFM-1300
SJFM-1600
SJFM-1800
Length of mold lip(mm)
900
1200
1400
1800
2000
Width of finished product(mm)
400-700
500-1000
600-1250
800-1500
900-1700
Max compounding speed(m/min)
80-110
80-110
80-110
60-110
60-110
Laminating thickness(mm)
0.01-0.03
0.01-0.03
0.01-0.03
0.01-0.03
0.01-0.03
L/D ratio for screw
80 *30
95 *30
105 *30
120 *32
140 *32
Max. diameter for roll unwinding / rewinding(mm)
1200
1200
1200
1200
1200
Overall size(M)
12*6*3.2
12.5*7*3.2
13*8*3.2
13 *9 *3.2
13*12*3.2
Power(kw)
60
70
80
100
130
Compounding/mirror cool roll(mm)
510
510
600
600
600




Applicable coating film resin: LDPE/PP/EVA;   Base material : BOPP,  BOPET, BOPA, CPP, CPE, PAPER, ALUMINIUM FOIL, NONWOVEN, PLASTIC FILM, ETC.,

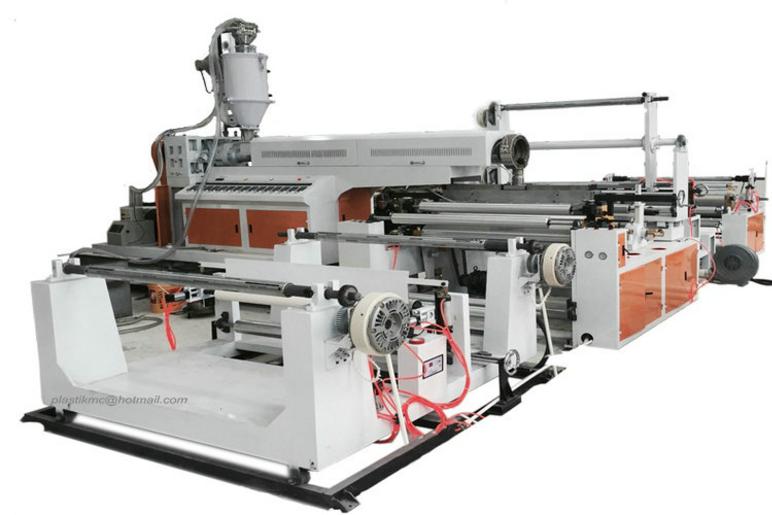

Membrane Extrusion Laminating Machine. Healthy environmental  membrane machine and paper plastic composition unit (non-adhesive composition unit which integrate winding, drying, surface process, composition, edge-cutting, adsorption edge with rewinding and adopted with photo-electricity tracking, electric-flower process; lines peed length of material digital display; full automatic constant tension, temperature-automatic control etc advanced technologies Application & End product: coating film such as HDPE on surface of paper (as raw material for making paper disposable cup, or shopping paper bags), non-woven fabric (for making non-woven bag) Extruding flow membrane & cartoons (brown packing paper, paper for cup, good quality paper) clothing metal foil, milk “Te.tra Pak” bag, plastic bags as well as other synthetical material

air bubble film machine stretch film extrusion

Membrane-Extrusion Laminating Machine: Paper-Aluminum Foil-Non-Woven Fabric-PP Printed Film

Green Type- Environmental Extrusion Laminating machine
