Application for kraft bubble film mailer:
Air Bubble Padded Envelope: Air bubble envelope is made of craft paper laminated. These are available in various GSM & sizes as per requirements of customers. The product is preferred to protect compact disc, floppy disc or any delicate item.

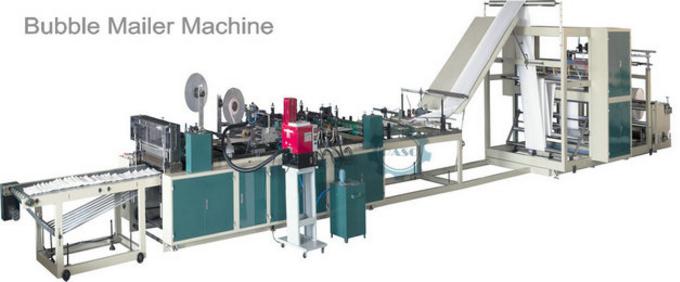

This machine dedicated machine is designed specifically for the production of kraft bubble envelope . Bag way : Laminating
Kraft paper with PE bubble film by hot roll bonding , composite materials with good by the fold forming device , and then molded by hot pressing the horizontal seal and cut into standard composite bubble envelope . The machine
uses an advanced motion control technology , unwinding from the film material to cut molding , under computer control system out of the bag neat and beautiful , strong adhesion , reliable operation and easy to understand and
convenient , is a high quality dedicated equipment bag.
*End product: especially for paper kraft bubble film bag, PE foam bags, three layers bubble film pouch making
QPB-K800 bubble envelopes kraft bubble mailer machine; More details as per real demanding and request from customers.
Suitalbe material | kraft paper80~140g/sqm(coated)+PE bubble film (25~150gsm) |
Max design speed | 1~40m/min (according to making size,film THK; double speed making small bag) |
Max bag length | 750mm (including tongue of bag) |
Max bag width | 600mm (can design as per requirements) |
Max reel width | 1500mm |
Max reel diameter | 1400mm |
Power supply | 3-phase 4-lines AC 380V 50HZ 38KW |
Weight | 7500KG |
Overall dimension(L*W*H) | 21000*2500*2800 |
